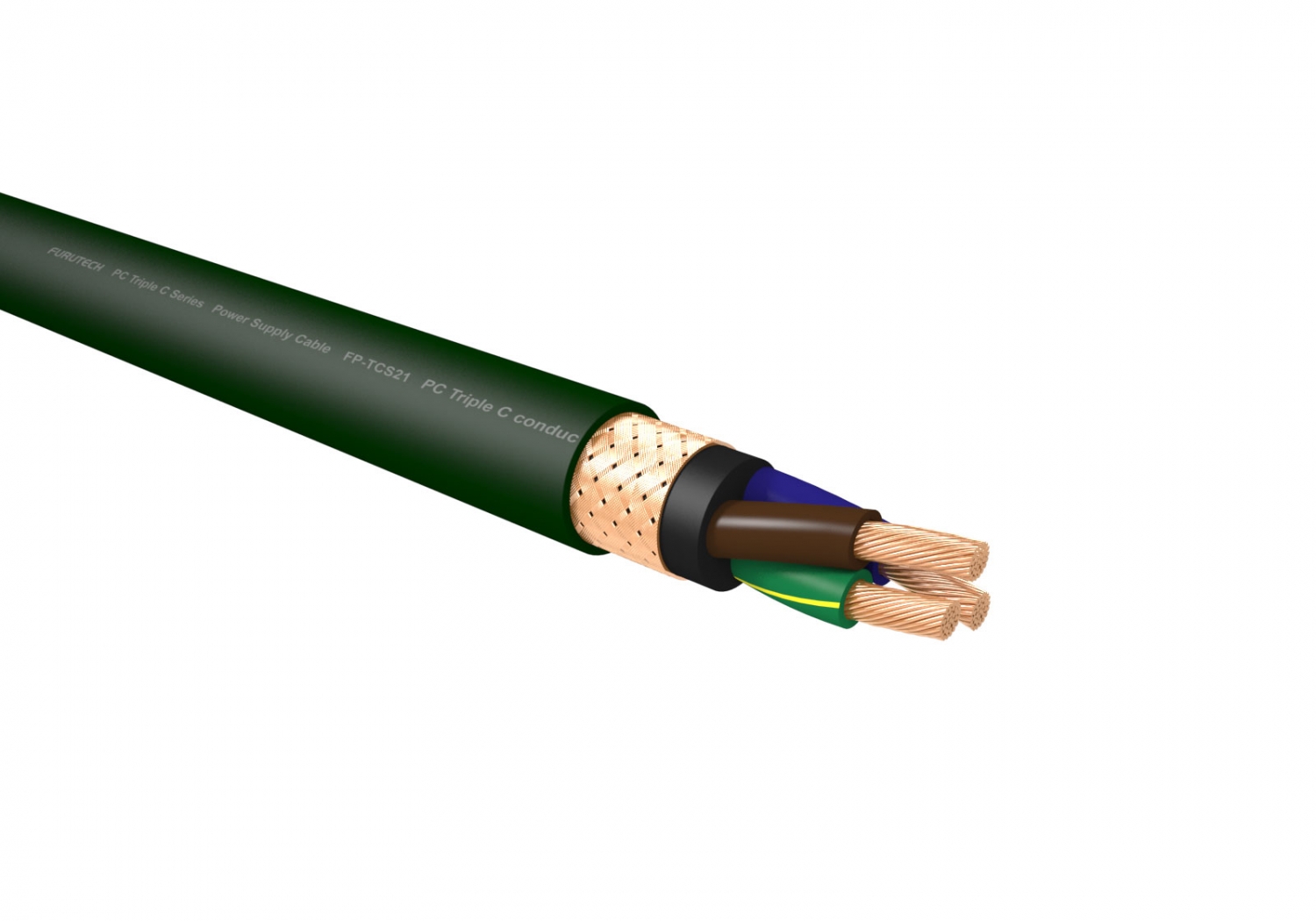

FP-TCS21

Characteristics Purity > 99.996% Conductivity (EC) ≒101.5 IACS% Tensile strength (TS) ≒250 MPa Purity > 99.996% Elasticity (E) ≒35% wire (1.3 mmΦ) Voltage rating: 20A 125V / 16A 250V - Alpha PC-Triple C conductor: diameter 1.9mm (14 AWG) - Insulation: Special grade Flexible PVC (Brown, Light Blue, Green/Yellow) diameter 3.5mm - Inner Sheath: Special grade Flexible PVC (Black) diameter 9.2mm - Shield: 0.12mm OFC Wire Braid - Outer Sheath: Flexible PVC (Dark Green) diameter 12.8mm
