U-4.1T

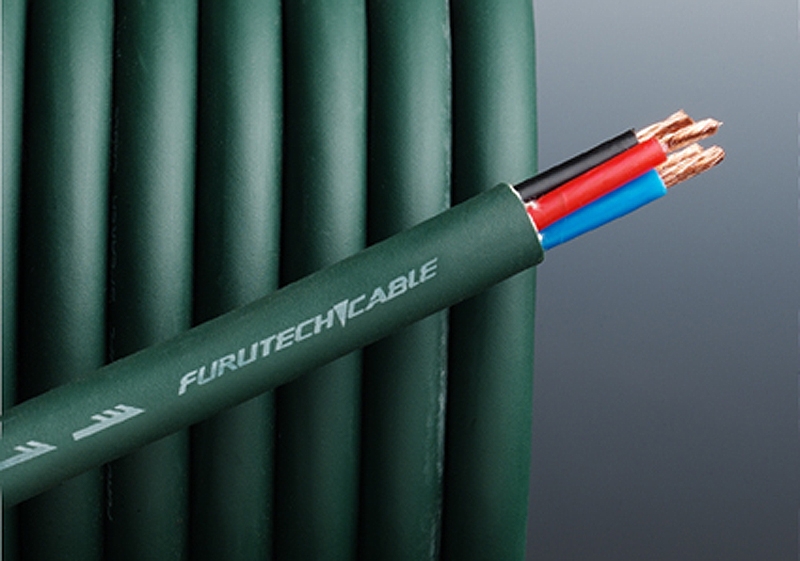

13 AWG α(Alpha)μ-OFC Conductor(2.54 sq.mm)for Treble(Blue、Black) 13 AWG α(Alpha)μ-OFC Conductor(2.47 sq.mm)for Bass(Red、White) Material:μ-OFC α(Alpha)μ-OFC-Conductor---The fine μ-OFC Conductor treated with the α(Alpha) Process (Super Cryogenic & Demagnetizing Treatment) Sound characteristics: Wide frequency extension, dynamic impact ・Conductor-1: α(Alpha)Conductor,μ-OFC (21/0.15mm+6/46/0.10mm(rope-lay stranding)) ・Insulation: Poly Propylene(for Treble，Blue、Black) ・Conductor-2: α(Alpha)Conductor,μ-OFC (7/5/0.3mm(concentric stranding)) ・Insulation: Poly Propylene (for Bass，Red、White) ・Sheath: Flexible PVC (Dark Green) ・Overall Diameter: 11.0 mm (≒13 AWG) / (2.5 sq.mm) ・Electrical Properties 　Max. Conductor Resistance: 10.9Ω/km(for Treble) 　Max. Conductor Resistance: 10.20Ω/km(for Bass) 　Dielectric Strength: AC 500 V/1min. 　Min. Insulation Resistance: 1000 MΩ.km 　Capacitance (for Treble): Approx. 70 PF/M 　Capacitance (for Bass): Approx. 85 PF/M
